Off-Grid Storage Solution

In this solution, PV, genset and grid as power source, and use all in one energy storage system for energy storage, dispatching and control, to provide stable and uninterrupted power for household appliances. At the same time, the rational use of this system can also effectively help users in areas with high electricity prices to improve self-consumption rate of PV to reduce electricity bills.

Application advantages

Provide basic power supply in areas without grid

The energy storage system serves as the main power supply. PV or diesel power charge the system at daytime and supply energy to home or outdoor equipment at night when needed.

Provide emergency power supply in areas with unstable grid

The energy storage system works as backup power source, at daytime, PV and grid charge the battery and keep a certain safe power level, supply power to loads such as household appliances and small equipment when grid is gone.

Improve PV self-consumption rate in areas where PV power can’t be output to grid

The energy storage system is used as a dispatching system. During the peak time of PV power generation, it uses the remaining PV power to charge the battery after supplying the load, making full use of PV power, reducing the use of grid power and electricity bills.

In the area with different electricity price at peak and valley time, realize off-peak grid electricity consumption to reduce electricity bills

As a regulating system, the energy storage system makes full use of the grid electricity price rules to reduce household electricity bills. Recharge when electricity price is low, and discharge to supply loads when electricity price is high. Thereby, reduce household electricity bills. In this scenario, with the use of the PV system, which can maximize the use ratio of PV system and optimize household energy structure further.

System diagram

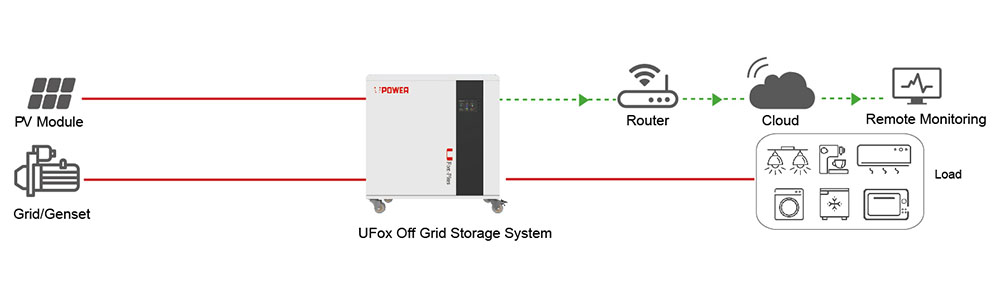

Energy Storage Solutions for Areas Without Grid




In remote areas or islands, there may be no electricity, and electricity is mainly derived from PV or diesel generator. The use of UFox series energy storage system can realize the energy storage and reasonable energy dispatching, and solve the problem of basic electricity consumption in the area of no electricity. The UFox series provides a variety of installation methods, a variety of battery capacity, which is easy for customers to apply in different scenarios.

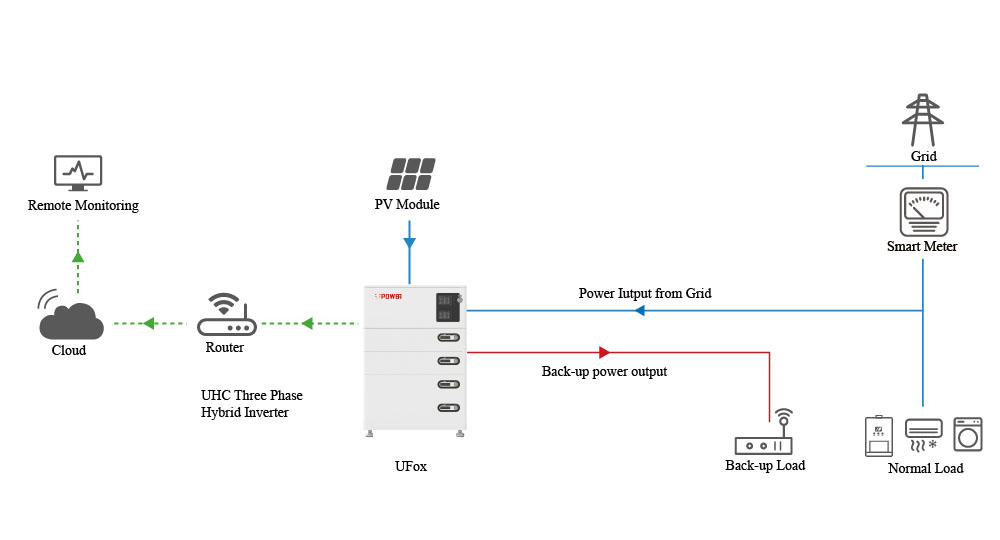

Single Phase Off-grid Energy Storage Solution




Users with three phase grids in areas with unstable power supply can use UFox series products to build off-grid energy storage systems. The UFox series has several sub-series such as UFox-Mini, UFox-Plus, UFox-WP, UFox-X, etc. The power range covers 3.5~10kW, and the battery capacity range covers 5.12~40.96kWh. Users can freely choose and match different systems according to their needs.

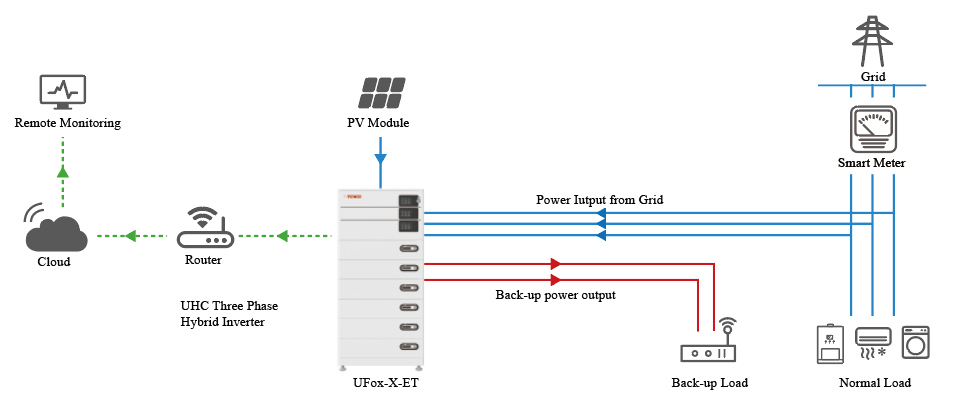

Three phase off-grid energy storage solution




Users with three phase grids in areas with unstable power supply can use UFox-X series products to build off-grid energy storage systems. The power range of UFox-X series is from 10~15kW, and the battery modules are stackable. Customers can freely choose the number of modules and the battery capacity range is 10.24~40.96kWh.


CASE

Indonesia 8kW Off-grid Storage Power Station:8kW/10.24kWh

PV power：8kW，Energy storage capacity：10.24kWh，Installation site: Indonesia

PV power：8kW

Energy storage capacity：10.24kWh

Installation site: Indonesia

Brazil 5kW Off-grid Power Station:5kW/10.24kWh

PV power：5kW，Energy storage capacity：10.24kWh，Installation site: Brazil

PV power：5kW

Energy storage capacity：10.24kWh

Installation site: Brazil

South Africa Off grid Storage Power Station:10kW/20.48kWh

PV power：10kW，Energy storage capacity：20.48kWh，Installation location:South Africa

PV power：10kW

Energy storage capacity：20.48kWh

Installation location:South Africa

Related Product

UFox-X-ES Series

UFox-X series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It contains expandable LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

UFox-WP Series

UFox-WP series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It has built-in LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

UFox-Plus-E Series

UFox series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It has built-in LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

UFox-Mini-E Series

UFox-Mini-E series is an off-grid energy storage system, which can connect solar panel,grid（or generator) and load. It has built-in LFP battery，off-grid inverter and energy management system（EMS）. It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill ,store the energy for emergency back-up.

UFox-X-ET Series

UFox-X series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It contains expandable LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.
