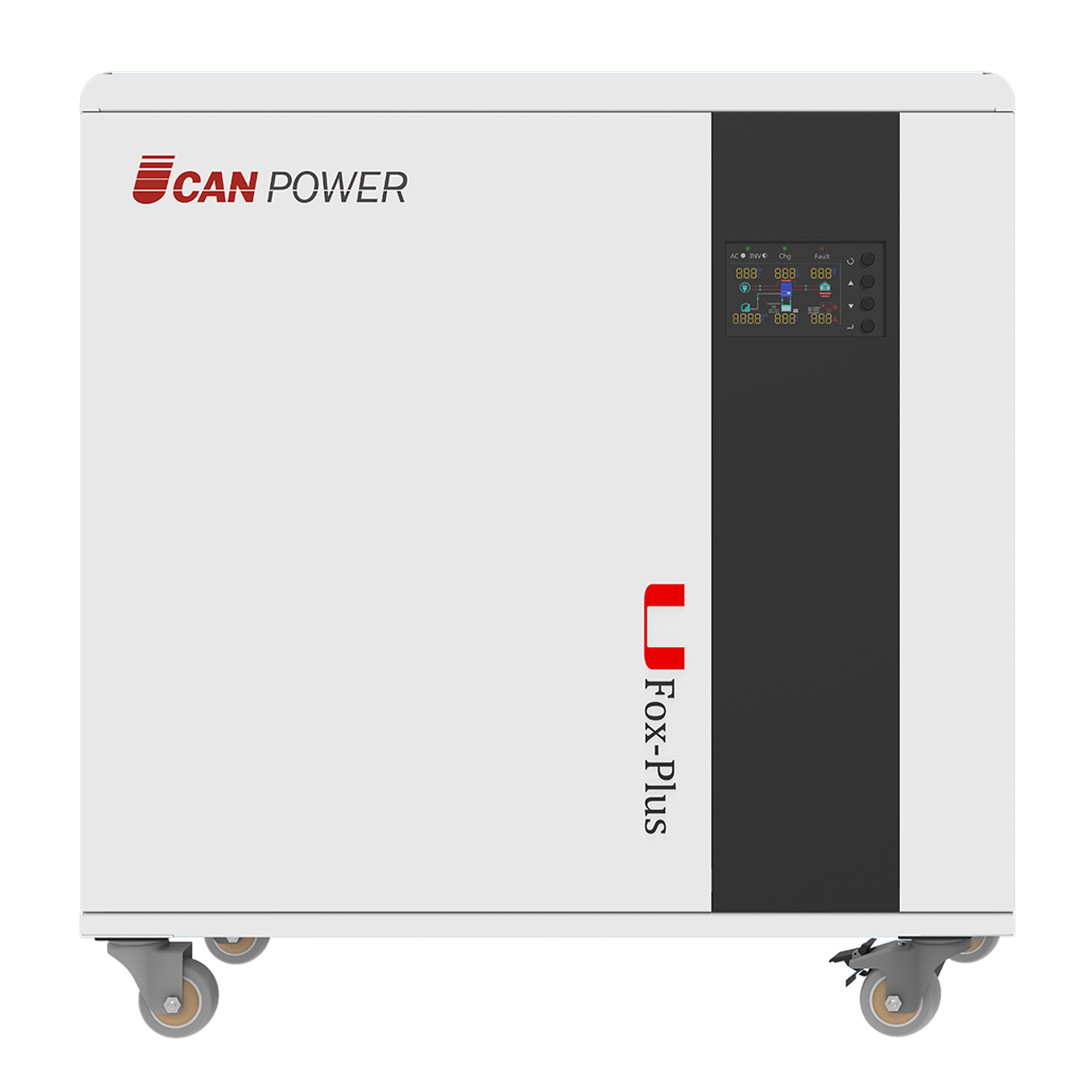

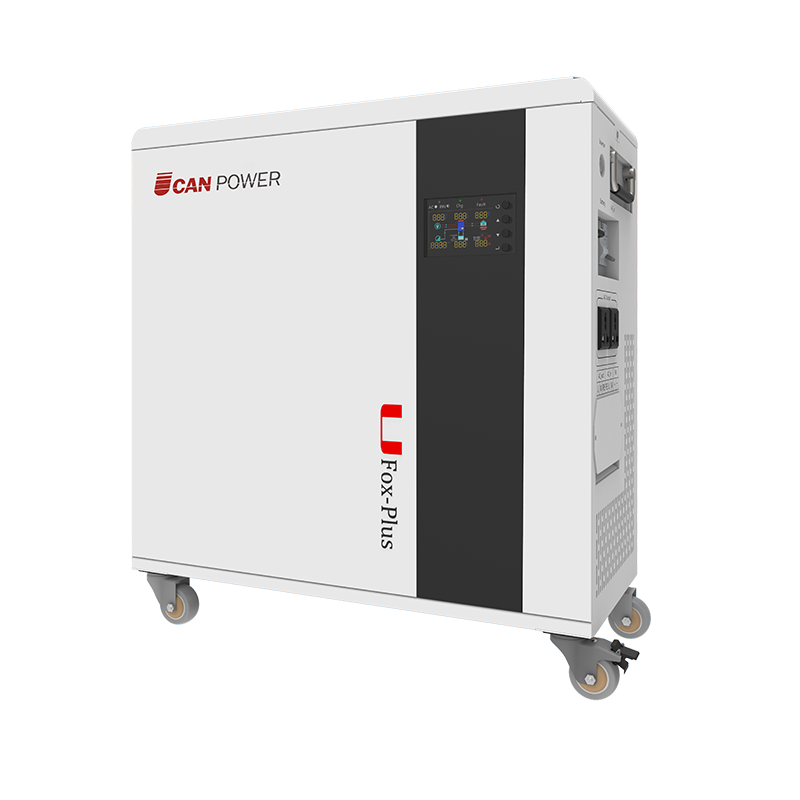

UFox-Plus-E Series

UFox series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It has built-in LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

Home > Products > OFF-GRID Storage System

>

<

Advantage

: Advanced Design

All in one design, compact and elegant appearance.
Easy to install and move.
Both PV and grid charge, fast and convenient.
Peak-shaving mode, reduce the electricity bill.

: High Reliability

Integrate Max. 5.12kWh battery, long time power supply.
LFP battery cell technology, safe than ever.
Multiple protections, safe and reliable.

: User-Friendly

Multi-purpose AC outlet,eacy to use.
Multiple work modes, meet lots of scenarios.

Key Parameter

Battery

	UFox-Plus-30E		UFox-Plus-35E	UFox–Plus–50E
Rated voltage	51.2V		51.2V	51.2V
Voltage range	44.8~57.6V		44.8~57.6V	44.8~57.6V
Capacity	5.12kWh		5.12kWh	5.12kWh
Max. discharge rate	1C		1C	1C
Max. charge rate	1C		1C	1C
Battery type	Li-ion (LFP)		Li-ion (LFP)	Li-ion (LFP)

AC Output(Backup)

	UFox-Plus-30E		UFox-Plus-35E	UFox–Plus–50E
Rated power	3000W		3500W	5000W
Surge power	6000W,5s		7000W,5s	10000W,5s
Rated output voltage	220/230/240V		220/230/240V	220/230/240V
Max. output current	13.7A		16A	22.7A
Rated frequency	50/60Hz		50/60Hz	50/60Hz
THDv	＜3%		＜3%	＜3%
Output wave	Pure Sine Wave		Pure Sine Wave	Pure Sine Wave
Output type	AC Socket×2+Terminals		AC Socket×2+Terminals	AC Socket×2+Terminals

AC Input

	UFox-Plus-30E		UFox-Plus-35E	UFox–Plus–50E
AC input voltage range	170~280V		170~280V	170~280V
AC input frequency	50/60Hz		50/60Hz	50/60Hz
AC charge current(Battery)	15A(10/15A Adjustable)		30A(0~60A Adjustable)	30A(0~80A Adjustable)

PV Input

	UFox-Plus-30E		UFox-Plus-35E	UFox–Plus–50E
Max. PV power(Recommended)	1800W		4500W	6000W
Max. PV voltage	145V		450V	450V
MPPT voltage range	60~115V		120~430V	120~430V
Max PV charge current(Battery)	30A		80A	100A

General Data

	UFox-Plus-30E		UFox-Plus-35E	UFox–Plus–50E
Operating temperature	0℃~55℃		0~55℃	0~55℃
Storage temperature	-15℃~60℃		-15℃~60℃	-15℃~60℃
Humidity	5%~95%		5%~95%	5%~95%
Cooling strategy	Fan		Fan	Fan
Weight	64.6kg		67.6kg	67.6kg
Dimension [W x H x D]	585611230mm		585611230mm	585611230mm
Enclosure protection rating	IP20		IP20	IP20
Communication	WiFi/RS485		WiFi/RS485	WiFi/RS485
Certificate	CE,UN38.3,TUV mark		CE,UN38.3,TUV mark	CE,UN38.3,TUV mark
