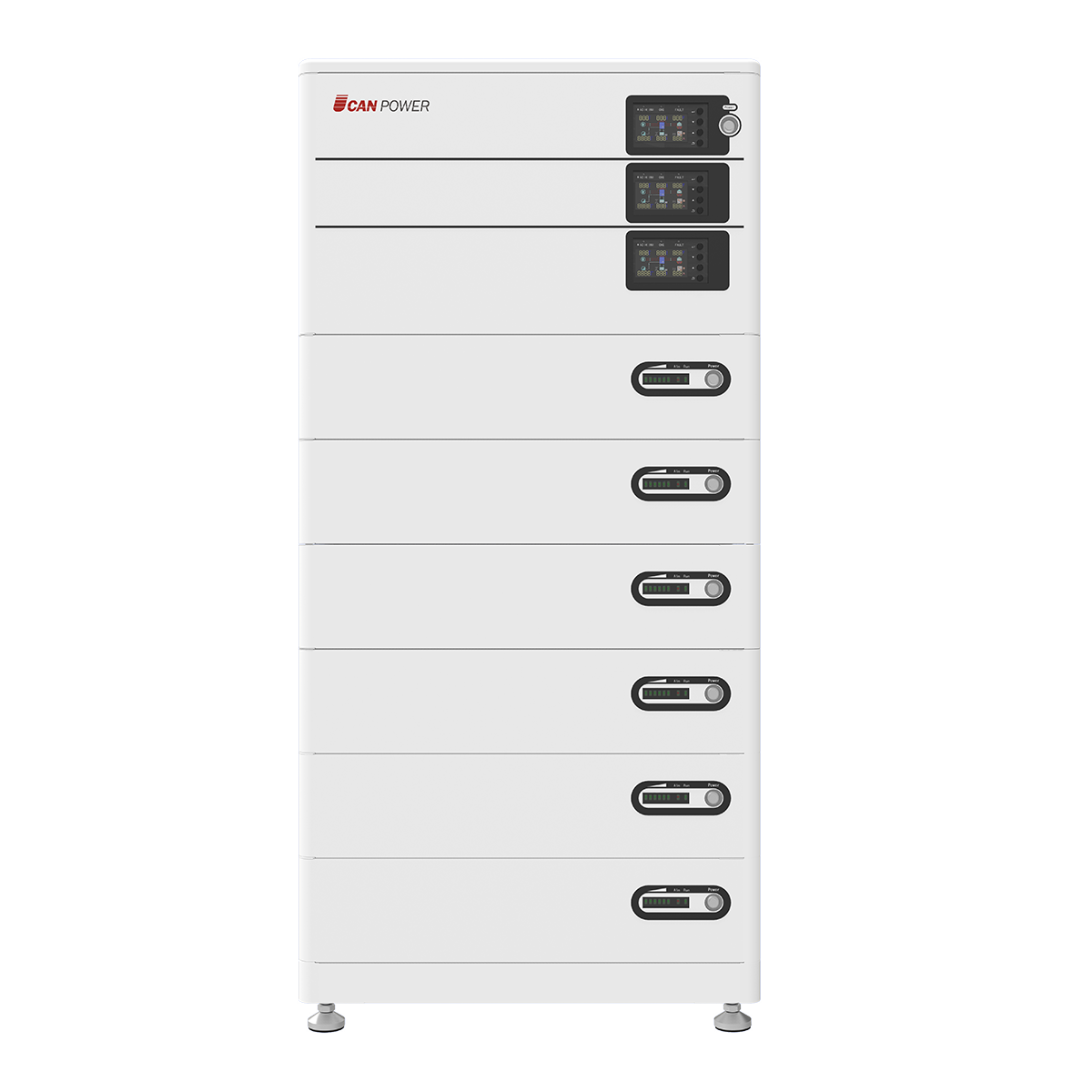

UFox-X-ET Series

UFox-X series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It contains expandable LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

Home > Products > OFF-GRID Storage System

>

<

Advantage

: Advanced Design

Both PV and grid charge, fast and convenient.
Peak-shaving mode, reduce the electricity bill.
Modular and all in one design, compact and elegant appearance, battery is expandable.

: High Reliability

LFP battery cell technology, safe than ever.
Multiple protections,safe and reliable.

: User-Friendly

Multi-purpose AC outlet,eacy to use
Multiple work modes, meet lots of scenarios

Key Parameter

Battery

	UFox-X-100ET	UFox-X-150ET
Rated voltage	51.2V	51.2V
Voltage range	44.8~57.6V	44.8~57.6V
Capacity	2.56kWhN(N=4~8) or 5.12Kwh N(N=2~8)	2.56kWhN(N=4~8) or 5.12Kwh N(N=2~8)
Max. discharge rate	0.7C	0.7C
Max. charge Rate	0.5C	0.5C
Battery type	Li-ion (LFP)	Li-ion (LFP)

AC Output(Backup)

	UFox-X-100ET	UFox-X-150ET
Rated power	10000W	15000W
Surge power	20000W,5s	30000W,5s
Rated output voltage	220/380V
Max. output current	16A/phase	22.7A/phase
Rated frequency	50/60Hz
THDv	＜3%
Output wave	Pure Sine Wave
Output type	Terminal

AC Input

	UFox-X-100ET	UFox-X-150ET
AC input voltage range	170~280V
AC input frequency	50/60Hz
AC charge current per inverter (Battery)	30A (0~60A Adjustable)	30A (0~80A Adjustable)

PV Input

	UFox-X-100ET	UFox-X-150ET
Max. PV power(Recommended)	4500W*3	6000W*3
Max. PV voltage	450V
MPPT voltage range	120~430V
Max PV charge current(Battery)	80A/80A/80A	100A/100A/100A

General Data

	UFox-X-100ET	UFox-X-150ET
Operating temperature	0~50℃
Storage temperature	-15℃~60℃
Humidity	5%~95%
Cooling strategy	Fan
Weight	Depend on configuration
Dimension [W x H x D]	Depend on configuration
Enclosure protection rating	IP20
Communication	WiFi/RS485
Certificate	CE,UN38.3,TUV mark
