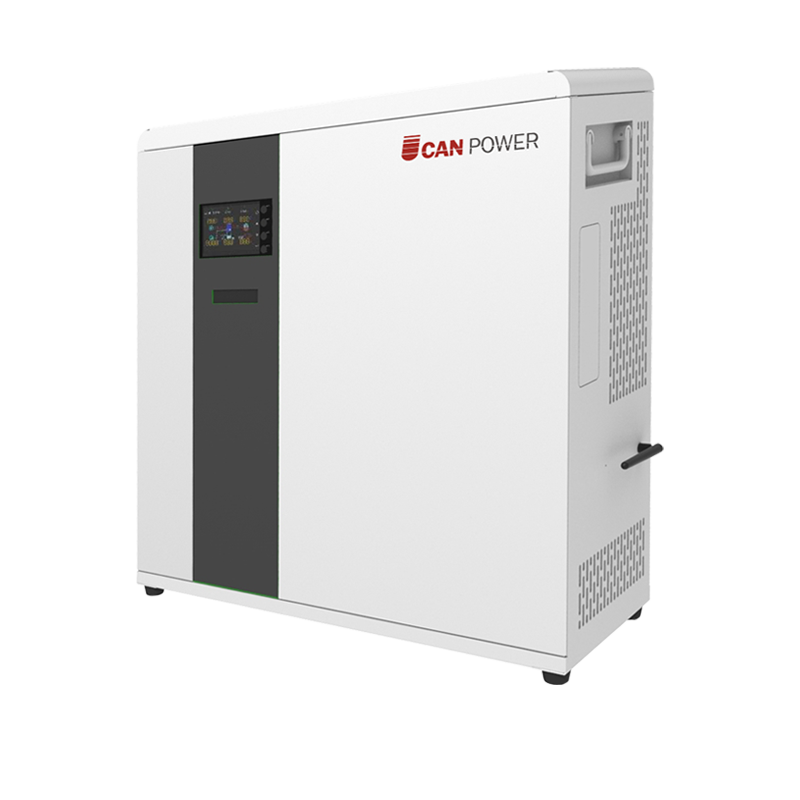

UFox-Mini-E Series

UFox-Mini-E series is an off-grid energy storage system, which can connect solar panel,grid(or generator) and load. It has built-in LFP battery,off-grid inverter and energy management system(EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill ,store the energy for emergency back-up.
   Home  >  Products  >  OFF-GRID Storage System

>
<

Advantage

Advanced Design

All in one design, compact and elegant appearance.

Easy to install and move.

Both PV and grid charge, fast and convenient.

Peak-shaving mode, reduce the electricity bill.

High Reliability

Integrate Max. 5.12kWh battery, long time power supply.

LFP battery cell technology, safe than ever.

Multiple protections,safe and reliable.

User-Friendly

Multi-purpose AC outlet,eacy to use

Multiple work modes, meet lots of scenarios

Key Parameter

Battery


UFox-Mini-30E
Rated voltage51.2V
Voltage range44.8~57.6V
Capacity3.43kWh

Max. discharge rate

1C

Max. charge rate

1C

Battery type

Li-ion (LFP)

AC Output(Backup)


UFox-Mini-30E
Rated power3000W
Surge power6000W,5s
Rated output voltage220/230/240V
Max. output current13.7A
Rated frequency50/60Hz
THDv<3%
Output wavePure Sine Wave
Output typeAC Socket×2+Terminals

AC Input


UFox-Mini-30E
AC input voltage range170~280V
AC input frequency50/60Hz
AC charge current(Battery)15A(10/15A Adjustable)

PV Input


UFox-Mini-30E

Max. PV power(Recommended)

1800W

Max. PV voltage145V

MPPT voltage range

60~115V
Max PV charge current(Battery)30A

General Data


UFox-Mini-30E
Operating temperature0℃~50℃
Storage temperature-15℃~60℃

Humidity

5%~95%

Cooling strategyFan
Weight48kg
Dimension [W x H x D]524.5*540.5*200mm
Enclosure protection rating

IP20

CommunicationWiFi/RS485
CertificateCE,UN38.3,TUV mark
