ULB-5120

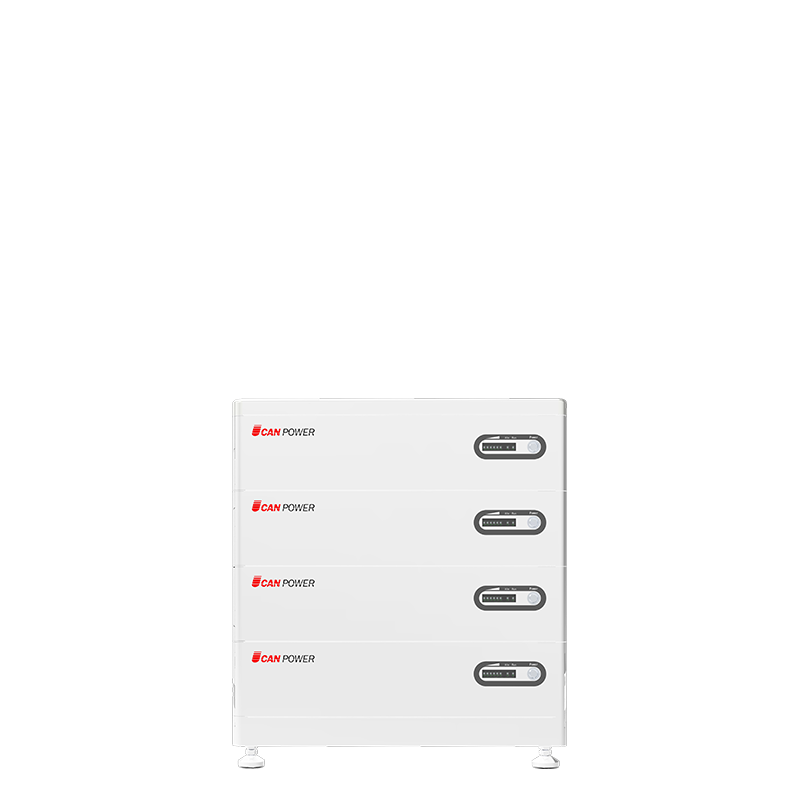

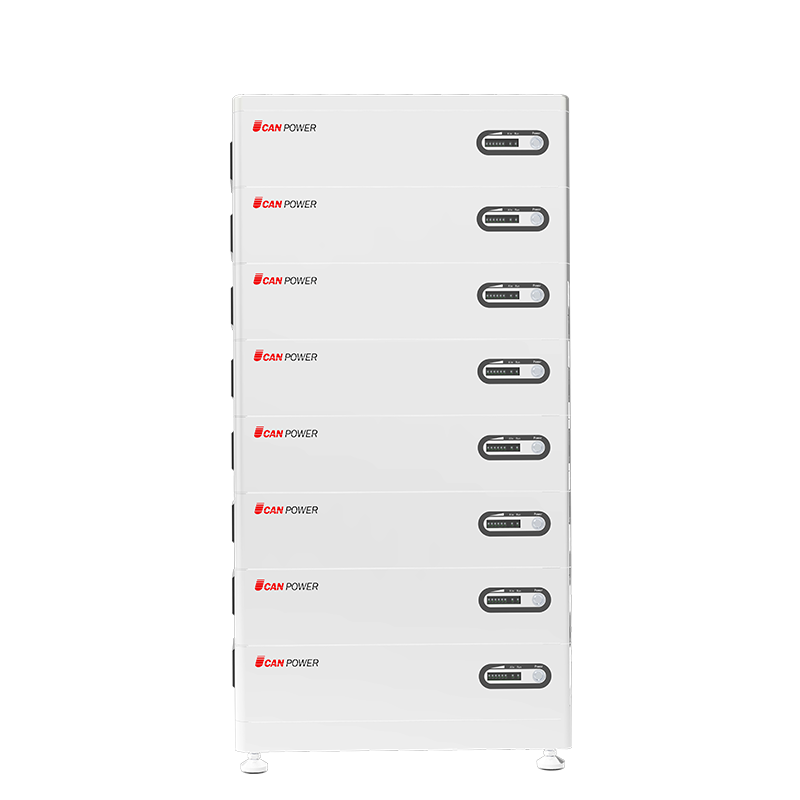

ULB-5120 series is a low voltage battery that offers multiple energy storage options through an expandable modular design (2-8 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance.
   Home  >  Products  >  Batteries

>
<

Advantage

Flexible capacity options, 10.24kWh to 40.96kWh Easy installation with modular and stacked design Remote diagnosis and real-time data monitoring Support 1C charge and discharge rate.

Flexible capacity options, 10.24kWh to 40.96kWh

Easy installation with modular and stacked design

Remote diagnosis and real-time data monitoring

Support 1C charge and discharge rate.

Key Parameter

System Parameters

System Structure






No. of series battery2345678

Rated energy(kWh)

10.2415.3620.4825.630.7235.8440.96

Usable energy(kWh)

9.213.8

18.4

23.027.632.236.8

Rated capacity(Ah)

100

Rated voltage(V)

51.2

Voltage range(V)44.8~57.6

Max. charge and discharge rate

1C

Cycle times

80% DOD,cycles>6000,residual capacity>70%
Communication

RS485/CAN 2.0

Protection functionOver voltage / Under voltage / Over temperature / Low temperature / Over current / Short circuit
Weight(kg)102149196243290337384
Dimension [W x D x H,mm]620*365*406620*365*545620*365*648620*365*823620*365*962620*365*1101620*365*1240


Working Conditions

ModelULB-5120

Installation

Indoor

Operating temperature

0℃~50℃ (Charge) / -10℃~50℃ (Discharge)

Optimum working temperature(℃)20~30(℃)

Storage temperature(℃)

-15~60(℃)
Humidity

5%~95%

Cooling strategyNatural
Enclosure protection ratingIP65
Altitude(m)<2000


Certificate

ModelULB-5120

Certificate

CE,UN38.3,TUV mark
