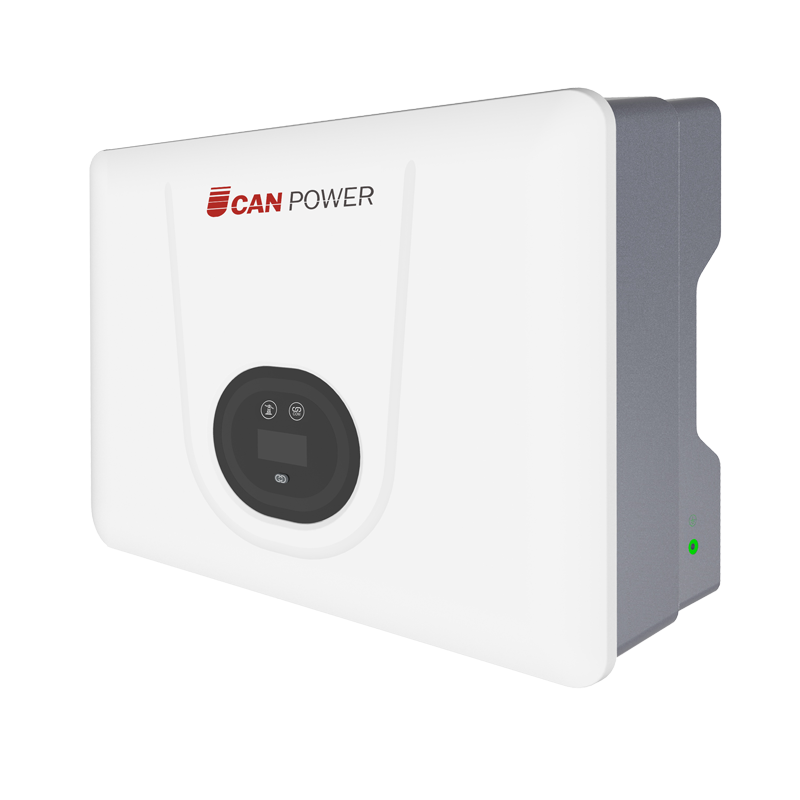

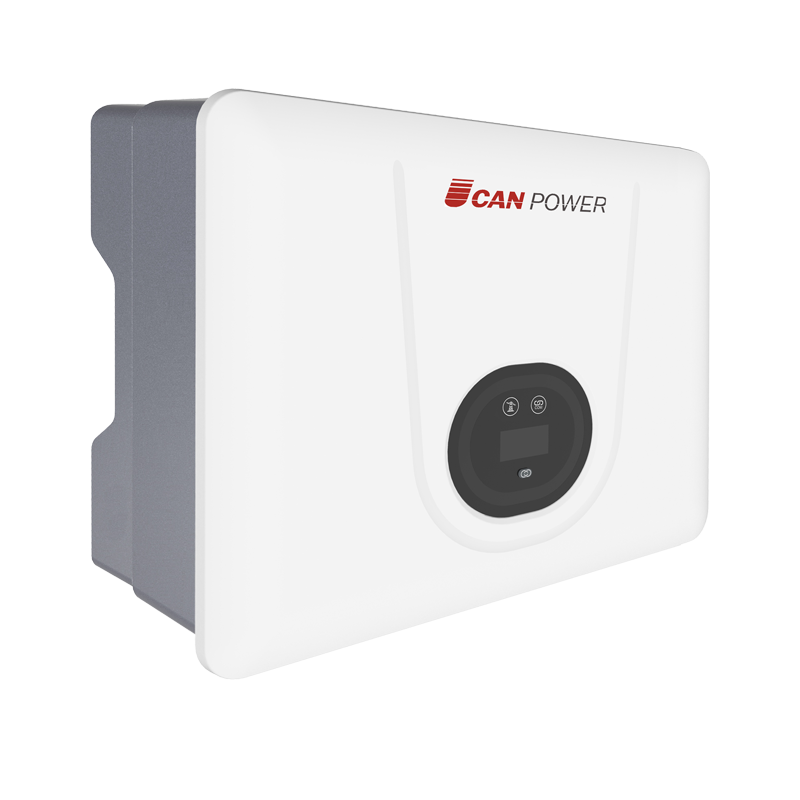

UHC-15~20KT

UHC-15~20KT suit small commercial applications. Hybrid and AC-coupled solution provide flexible options for both new and retrofit systems, with the feature of Max. 10 units inverter in parallel, offering a solution for small commercial project. All of them ensure the most efficient use of solar energy locally, increase self-consumption and grid independence, reduce your electricity bills.
   Home  >  Products  >  Hybrid Inverters

>
<

Advantage

Leading Technology

Max. 15A PV input current per string

Less than 10ms UPS-level switching

Max. 40A battery charge/discharge current

High Performance

Up to 110% unbalanced load

Max. 200% back-up output overloading @60s

Parallel operation with max. 10 units

High Reliability

IP65 protection degree

Compact and elegant design with integrated diecasting technology

Long-term efficient operation with advanced heat dissipation design

User-Friendly

Easy installation and O&M with horizontal design and quick plug terminals

Easy data check via both OLED display and App

Ideal for residential application with low operating noise

Key Parameter

PV Input Data


UHC-15KTUHC-20KT
Max.PV power22500W30000W

Max. DC voltage

1000V
Start-up voltage135V
MPPT voltage range200~950V

Rated DC voltage

620V
No. of MPP trackers

2

No. of string per MPP tracker2/2

Max. input current

30A/30A
Max. short current40A/40A

Battery Input Data


UHC-15KTUHC-20KT
Battery typeLi-lon

Battery voltage range

135~750V

Max. charge power15000W20000W
Max. charge/discharge current40A/40A
CommunicationCAN

AC Output Data (On-grid)


UHC-15KTUHC-20KT
Rated AC power15000W20000W
Max. AC output to grid16500VA22000VA
Max. AC power from grid30000VA30000VA

Max. AC current output to grid

25A33.5A

Max. AC current from grid

43.5A43.5A
Rated grid voltage3/N/PE, 220/380V, 230/400V, 240/415V
Grid voltage range

184~276V

Rated grid frequency50/60Hz
Output power factor

~1(0.8 leading to 0.8 lagging)

Output THDi (@Rated output)<3%

AC Output Data (Back-up)


UHC-15KTUHC-20KT
Rated output power15000W20000W
Max. output power16500VA22000VA
Peak output power, Duration25000VA, 60s25000VA, 60s

Max. output current

25A

25000VA, 60s

Rated output voltage

3/N/PE, 220/380V, 230/400V, 240/415V

Rated output frequency

50/60Hz
Output THDv (@Liner load)

<3%

Switch time

<10ms

Efficiency


UHC-15KTUHC-20KT

Max. efficiency

98.4%

Euro efficiency

97.5%

Protection


UHC-15KTUHC-20KT

DC switch

Yes
Protection

PV reverse polarity protection / Output over current protection / Output over voltage protection

Anti-islanding protection / Residual current detection / Insulation resistor detection / Battery reverse protection

Surge protection levelPV: Type II, AC:Type III

General Data


UHC-15KTUHC-20KT

Dimension

550×353×210mm

Weight

31kg
Inverter topologyNon-isolated

Standby self consumption

<15W
Operating temperature range-30℃~60℃
Relative humidity

0~100%

Operating altitude

<3000m

Cooling

Fan
Protection degreeIP65

Display

OLED&LED
Communication

RS485,Optional： WiFi/LAN

Standard warranty


Standard 5 years

Certificates


UHC-15KTUHC-20KT

EMC

EN61000

Safety

IEC62109-1, IEC62109-2

Grid

EN50549-1, TOR Generator Type A, VDE-AR-N-4105, CEI 0-21/CEI 0-16, UNE 206006, UNE206 007-1
