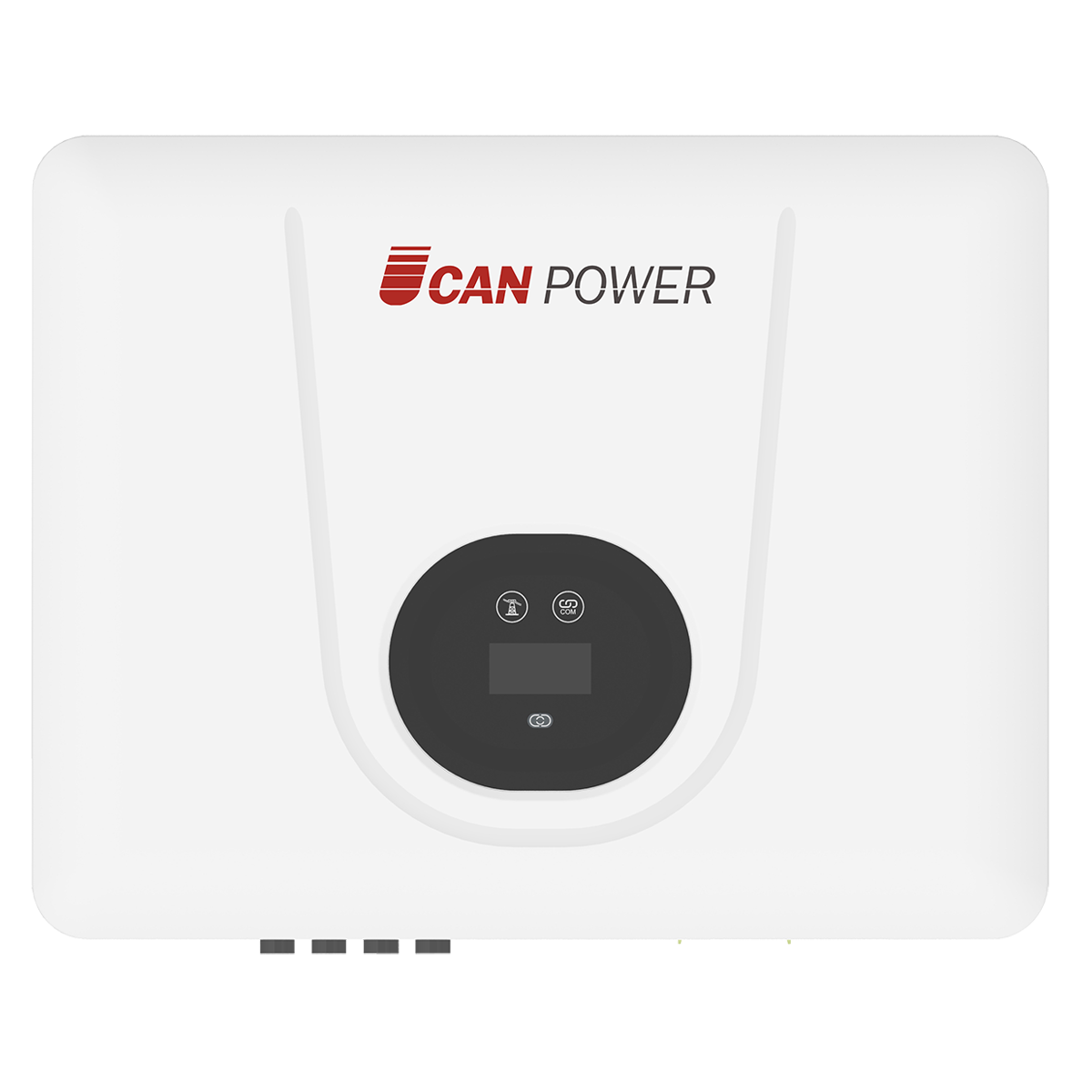

UHC-4~12KT

UHC - 4~12KT suit household and small commercial applications. Hybrid and AC-coupled solution provide flexible options for both new and retrofit systems, with the feature of Max.10 units inverter in parallel, offering a solution for small commercial project. All of them ensure the most efficient use of solar energy at home, increase self-consumption and grid independence, reduce your electricity bills.
   Home  >  Products  >  Hybrid Inverters

>
<

Advantage

Leading Technology

Max. 15A PV input current per string

Less than 10ms UPS-level switching

98.2% max. efficiency

High Performance

Up to 110% unbalanced load

Max. 200% back-up output overloading @60s

Parallel operation with max. 10 units

High Reliability

IP65 protection degree

Compact and elegant design with integrated diecasting technology

Long-term efficient operation with advanced heat dissipation design

User-Friendly

Easy installation and O&M with horizontal design and quick plug terminals

Easy data check via both OLED display and App

Ideal for residential application with low operating noise

Key Parameter

PV Input Data


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Max.PV power

6000W

7500W

9000W12000W15000W18000W
Max. DC voltage

1000V

Start-up voltage135V
MPPT voltage range

120~950V

Rated DC voltage

620V

No. of MPP trackers2
No. of string per MPP tracker

1/1

Max. input current15A/15A

Max. short current

20A/20A

Battery Input Data


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Battery type

Li-lon

Battery voltage range135~750V
Max. charge power4000W5000W

6000W

8000W

10000W

12000W

Max. charge/discharge current25A/25A
CommunicationCAN

AC Output Data (On-grid)


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Rated AC power

4000W

5000W6000W8000W

10000W

12000W
Max. AC power output to grid4400VA5500VA6600VA8800VA11000VA13200VA
Max. AC power from grid8000VA10000VA12000VA16000VA16500VA16500VA
Max. AC current output to grid6.7A8.3A10A13.3A16.5A20A

Max. AC current from grid

11.6A14.5A17.4A23.2A23.9A23.9A
Rated grid voltage3/N/PE, 220/380V, 230/400V, 240/415V
Grid voltage range184V~276V
Rated grid frequency50/60Hz
Output power factor

~1(0.8 leading to 0.8 lagging)

Output THDi (@Rated output)<3%

AC Output Data (Back-up)

11000VAUHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Rated output power4000W5000W

6000W

8000W10000W12000W
Max. output power4400W5500VA6600VA8800VA11000VA13200VA
Peak output power, Duration8000VA, 60s10000VA, 60s12000VA, 60s16000VA, 60s

20000VA, 60s

20000VA, 60s

Max. output current

6.7A8.3A10A13.3A16.5A20A
Rated output voltage3/N/PE, 220/380V, 230/400V, 240/415V
Rated output frequency50/60Hz

Output THDv (@Liner load)

<3%

Switch time

<10ms

Efficiency


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Max. efficiency

98.1%

98.1%

98.1%

98.2%

98.2%

98.2%

Euro efficiency

97.3%

97.3%

97.3%

97.4%

97.4%

97.4%

Protection


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
DC switchYes
Protection

PV reverse polarity protection / Output over current protection / Output over voltage protection

Anti-islanding protection / Residual current detection / Insulation resistor detection / Battery reverse protection

Surge protection levelPV: Type II, AC:Type III

General Data


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
Dimension

 550×353×210mm

Weight

26kg

Inverter topologyNon-isolated
Standby self consumption<15W

Operating temperature range

-30℃~60℃

Relative humidity

0~100%
Operating altitude<3000m

Cooling

Natural
Protection degreeIP65
DisplayOLED&LED

Communication

 RS485,Optional：WiFi/LAN

Standard warrantyStandard 5 years

Certificates


UHC-4KT UHC-5KT UHC-6KTUHC-8KT UHC-10KTUHC-12KT
EMCEN61000
SafetyIEC62109-1, IEC62109-2
GridEN50549-1, TOR Generator Type A, VDE-AR-N-4105, CEI 0-21/CEI 0-16, UNE 206006, UNE206 007-1
