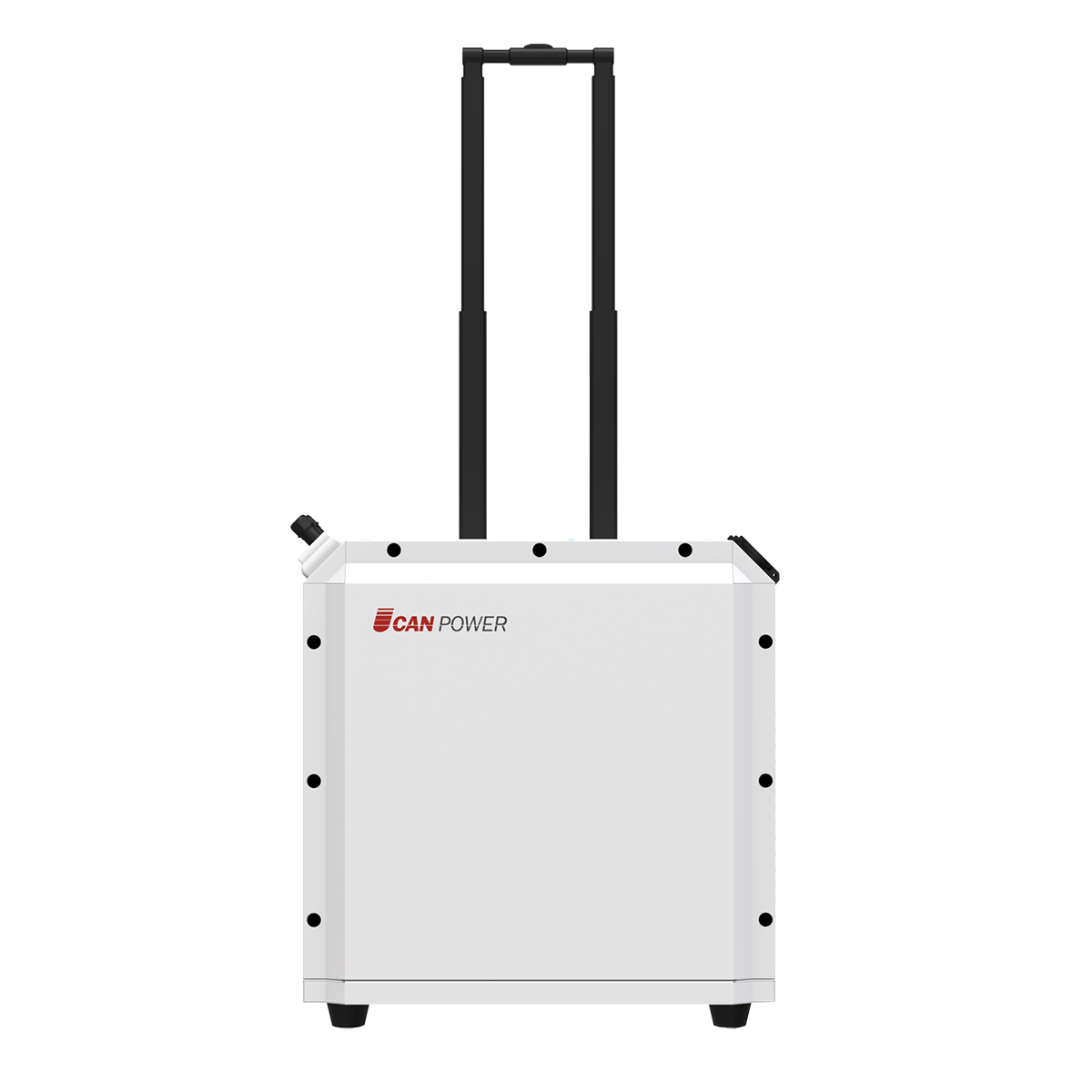

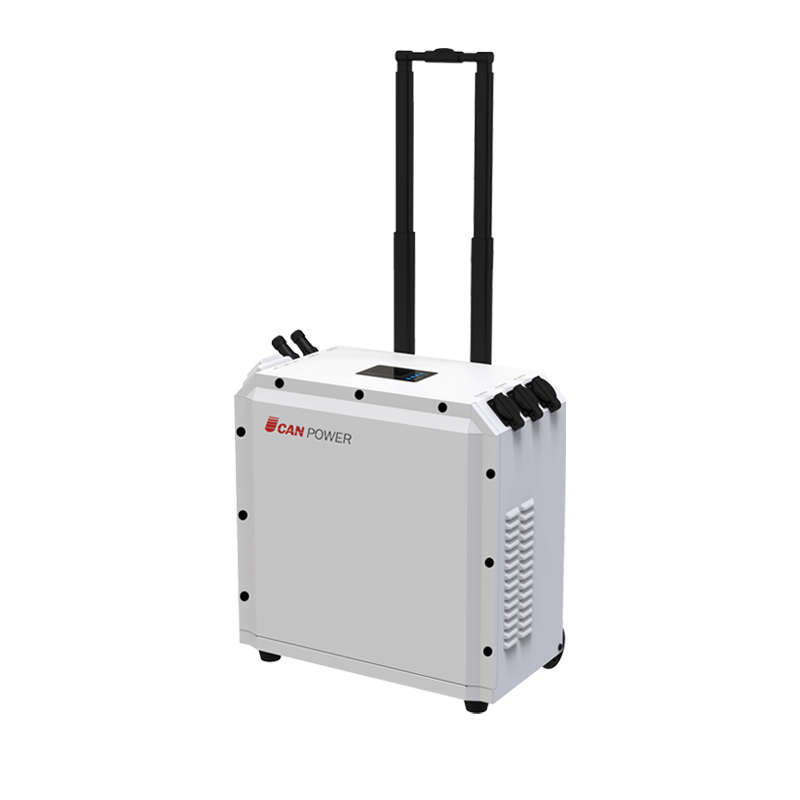

UBird-X-E Series

UBird-X series is a portable energy storage system, which can connect solar panel, grid (or generator) and load. It has built-in LFP battery, off-grid inverter and energy management system (EMS). With the application scenario of outdoor adventures, family parties and emergency backup.

Home > Products > Portable Storage System

>

<

Advantage

: Advanced Design

Suitcase design, compact and elegant appearance.
Easy to move for power supply.
Both PV and grid charge, fast and convenient.

: High Reliability

Integrate Max. 5.12kWh battery, long time power supply.
LFP battery cell technology, safe than ever.
Multiple protections, safe and reliable.

: User-Friendly

Multi-purpose AC outlet, eacy to use.
Multiple work modes, meet lots of scenarios.

Key Parameter

Battery

	UBird-X-Mini-30E	UBird-X-Plus-50E
Rated voltage	51.2V	51.2V
Voltage range	44.8~57.6V	44.8~57.6V
Capacity	3.43kWh	5.12kWh
Max. discharge rate	1C	1C
Max. charge rate	1C	1C
Battery type	Li-ion (LFP)	Li-ion (LFP)

AC Output(Backup)

	UBird-X-Mini-30E	UBird-X-Plus-50E
Rated power	3000W	5000W
Surge power	6000W,5s	10000W,5s
Rated output voltage	220/230/240V	220/230/240V
Max. output current	13.7A	22.7A
Rated frequency	50/60Hz	50/60Hz
THDv	＜3%	3%
Output wave	Pure Sine Wave	Pure Sine Wave
Output type	Multi-purpose AC Outlet×2	Multi-purpose AC Outlet×2

AC Input

	UBird-X-Mini-30E	UBird-X-Plus-50E
AC input voltage range	170~280V	170~280V
AC input frequency	50/60Hz	50/60Hz
AC charge current(Battery)	15A(10/15A Adjustable)	30A(0~60A Adjustable)

PV Input

	UBird-X-Mini-30E	UBird-X-Plus-50E
Max. PV power(Recommended)	1800W	4500W
Max. PV voltage	145V	145V
MPPT voltage range	60~115V	60~115V
Max PV charge current(Battery)	30A	80A

General Data

	UBird-X-Mini-30E	UBird-X-Plus-50E
Operating temperature	0~55℃
Storage temperature	-15℃~60℃
Humidity	5%~95%
Cooling strategy	Fan
Weight	50kg	68kg
Dimension [W x H x D]	532x 605x 240mm	522 x 555 x 310mm
Enclosure protection rating	IP43	IP43
Certificate	CE,UN38.3,TUV mark	CE,UN38.3,TUV mark
