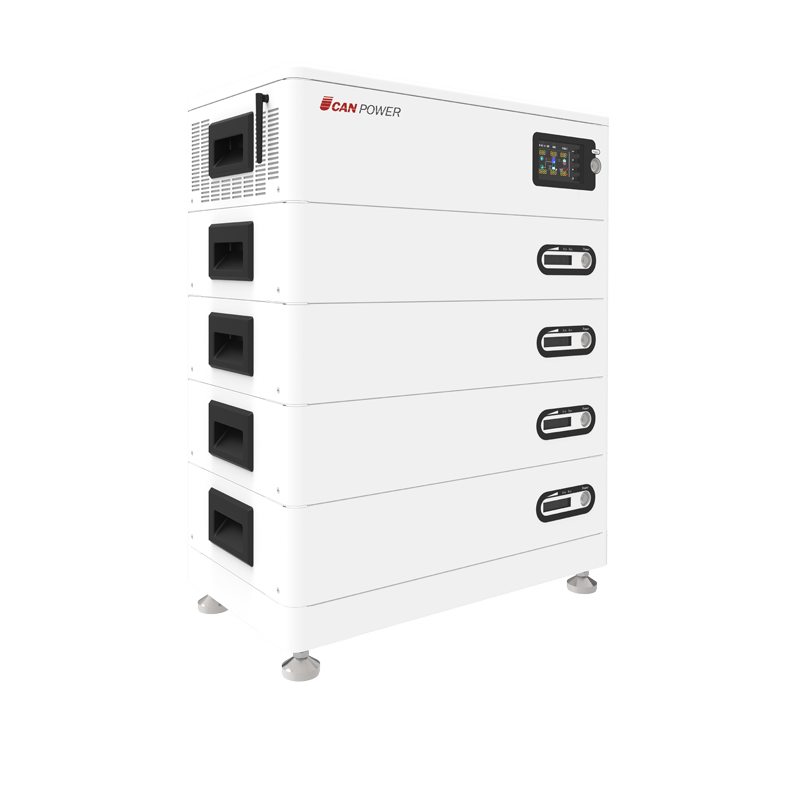

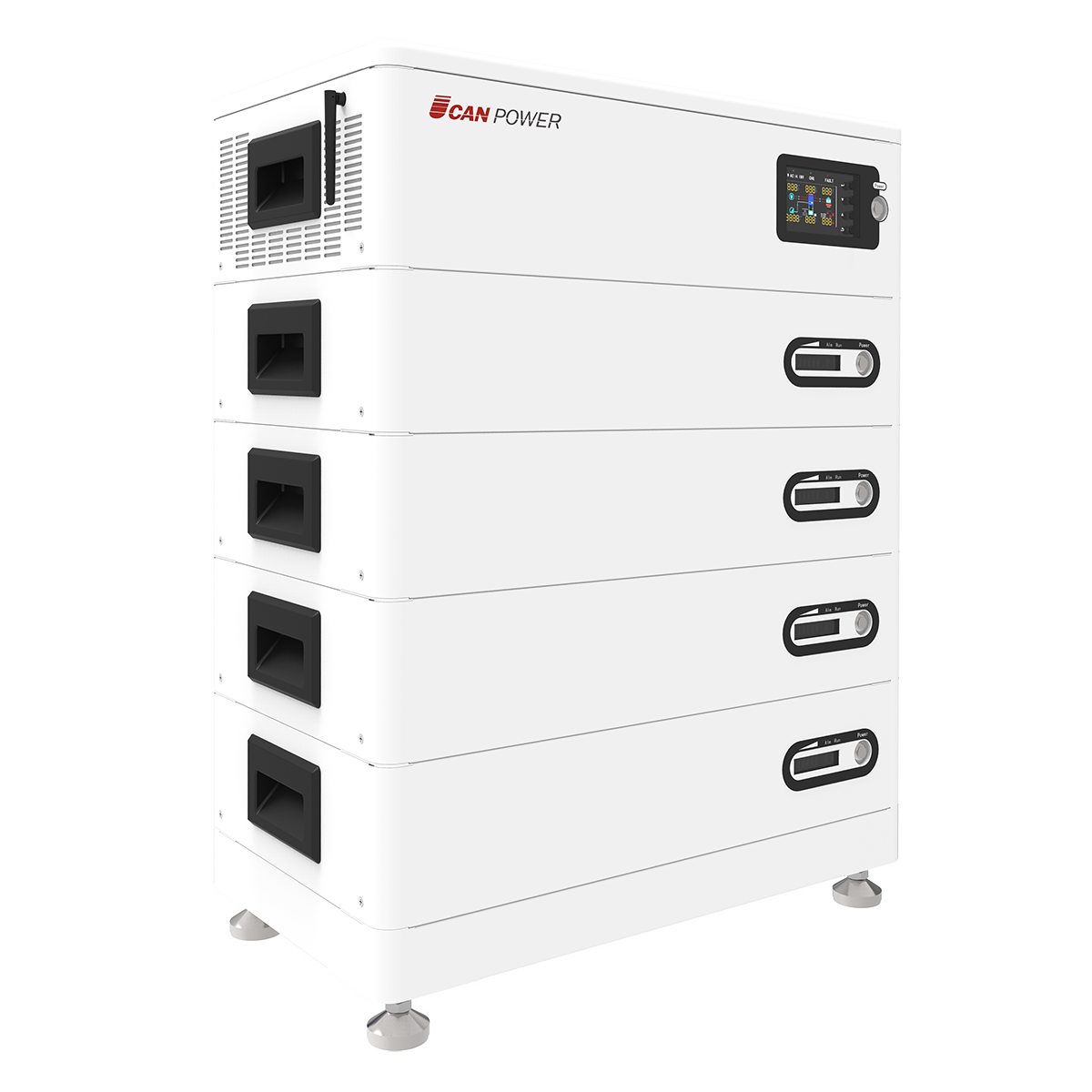

UFox-X-ES Series

UFox-X series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It contains expandable LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

Home > Products > OFF-GRID Storage System

>

<

Advantage

: High Reliability

LFP battery cell technology, safe than ever.
Multiple protections, safe and reliable.

: User-Friendly

Multi-purpose AC outlet, eacy to use.
Multiple work modes, meet lots of scenarios.

: Advanced Design

Both PV and grid charge, fast and convenient.
Peak-shaving mode, reduce the electricity bill.
Modular and all in one design, compact and elegant appearance, battery is expandable.

Key Parameter

Battery

	UFox-X-035ES	UFox-X-050ES	UFox-X-070ES	UFox-X-100ES
Rated voltage	51.2V		51.2V
Voltage range	44.8~57.6V		44.8~57.6V
Capacity	2.56kWhN(N=3~8) or 5.12Kwh N(N=2~8)		2.56kWhN(N=4~8) or 5.12Kwh N(N=2~8)
Max. discharge rate	1C		1C
Max. charge Rate	1C		1C
Battery type	Li-ion (LFP)		Li-ion (LFP)

AC Output(Backup)

	UFox-X-035ES	UFox-X-050ES	UFox-X-070ES	UFox-X-100ES
Rated power	3500W	5000W	7000W	10000W
Surge power	7000W,5s	10000W,5s	14000W,5s	20000W,5s
Rated output voltage	220/230/240V	220/230/240V	220/230/240V	220/230/240V
Max. output current	16A	22.7A	32A	45.4A
Rated frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
THDv	＜3%		＜3%
Output wave	Pure Sine Wave		Pure Sine Wave
Output type	Pluggable connector	Pluggable connector	Terminal	Terminal

AC Input

	UFox-X-035ES	UFox-X-050ES	UFox-X-070ES	UFox-X-100ES
AC input voltage range	170~280V	170~280V	170~280V	170~280V
AC input frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
AC charge current per inverter (Battery)	30A (0~60A Adjustable)	30A (0~80A Adjustable)	30A (0~60A Adjustable)	30A (0~80A Adjustable)

PV Input

	UFox-X-035ES	UFox-X-050ES	UFox-X-070ES	UFox-X-100ES
Max. PV power(Recommended)	4500W	6000W	4500W*2	6000W*2
Max. PV voltage	450V	450V	450V	450V
MPPT voltage range	120~430V	120~430V	120~430V	120~430V
Max PV charge current(Battery)	80A	100A	80A/80A	100A/100A

General Data

	UFox-X-035ES	UFox-X-050ES	UFox-X-070ES	UFox-X-100ES
Operating temperature	0~50℃	0~50℃	0~50℃	0~50℃
Storage temperature	-15℃~60℃	-15℃~60℃	-15℃~60℃	-15℃~60℃
Humidity	5%~95%	5%~95%	5%~95%	5%~95%
Cooling strategy	Fan	Fan	Fan	Fan
Weight	Depend on configuration		Depend on configuration
Dimension [W x H x D]	Depend on configuration		Depend on configuration
Enclosure protection rating	IP20		IP20
Communication	WiFi/RS485		WiFi/RS485
Certificate	CE,UN38.3,TUV mark		CE,UN38.3,TUV mark
