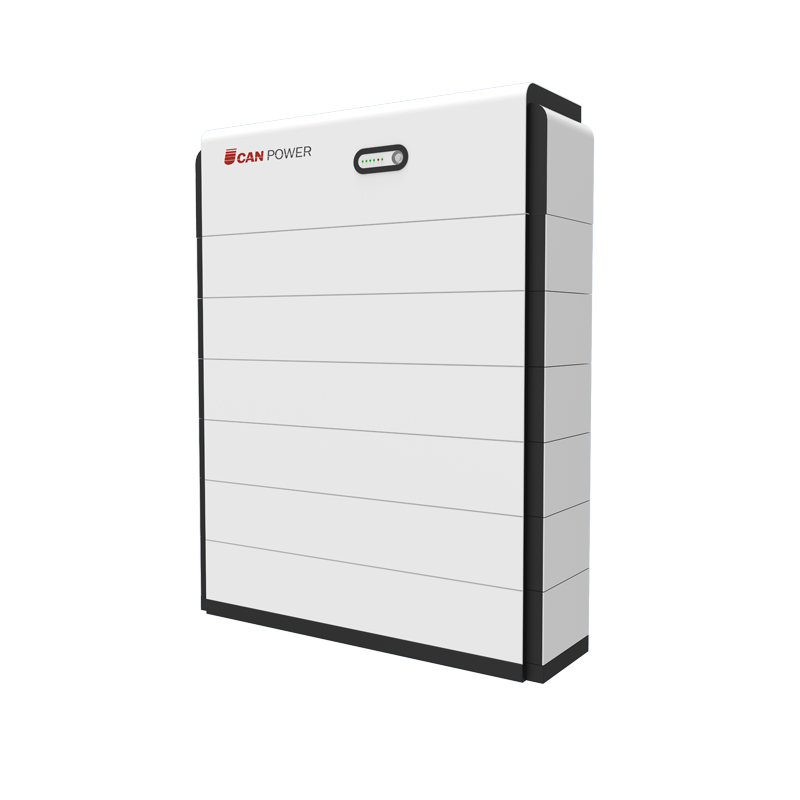

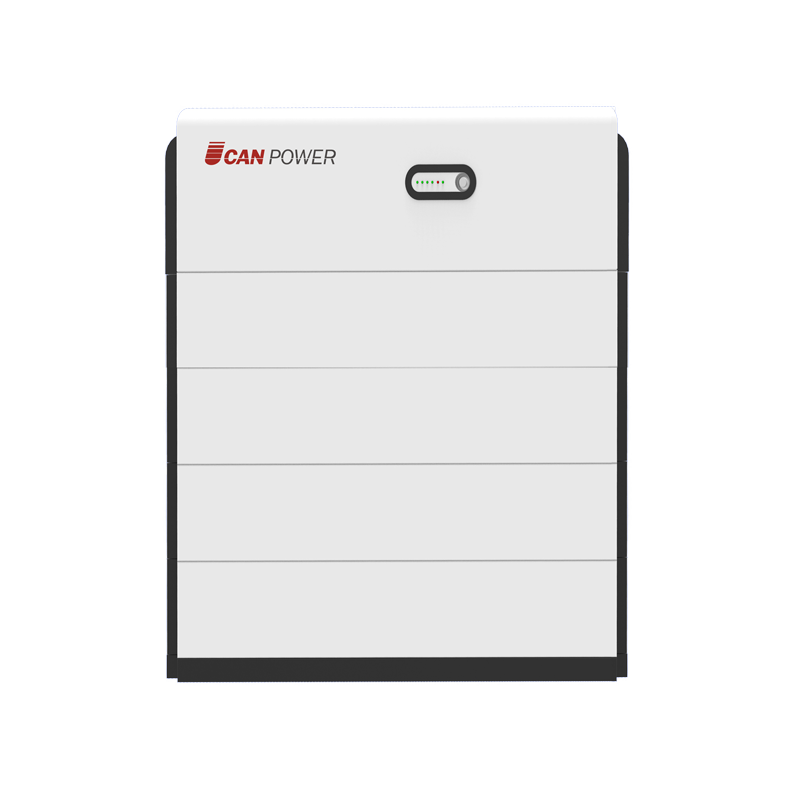

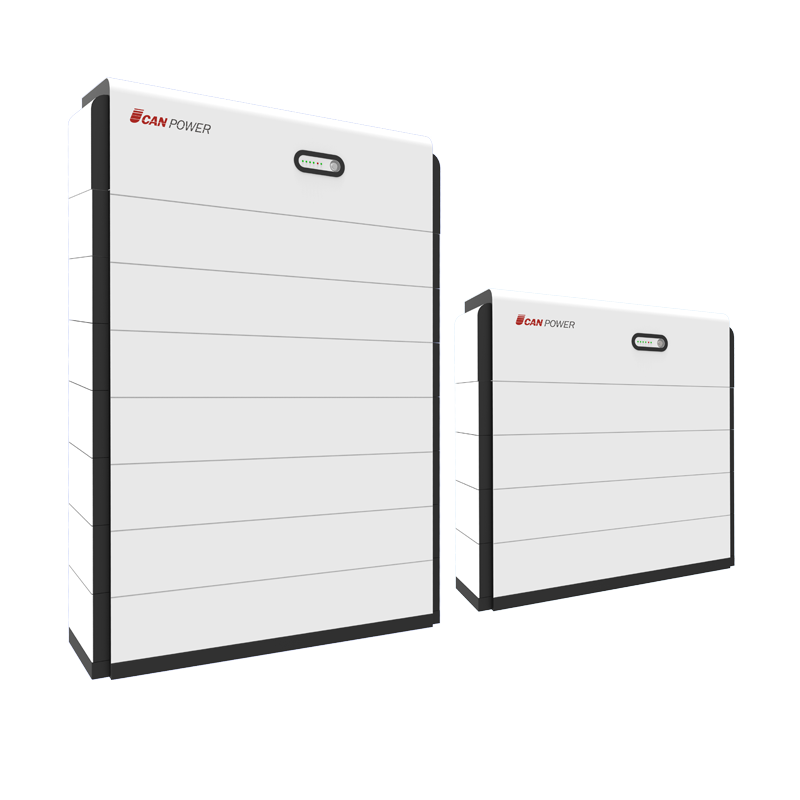

UHB-50Ah Series

UHB-50Ah series is a high voltage battery that offers multiple energy storage options through an expandable modular design (2-10 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance.
   Home  >  Products  >  Batteries

Advantage

Original battery active balance technology

Easy installation with modular and stacked design

Flexible capacity options, 5.12kWh to 25.6kWh

Remote diagnosis and real-time data monitoring

Key Parameter

Electrical Parameters


UHB512UHB768UHB1024UHB1280UHB1536UHB1792UHB2048UHB2304UHB2560
No. of series battery2345678910

Rated energy(kWh)

5.127.6810.2412.815.3617.9220.4823.0425.6

Usable energy(kWh)

4.66.9

9.2

11.5213.8

16.13

18.4

20.7

23
Rated capacity(Ah)50

Rated voltage(V)

51.2×N(N=NO. of series battery)

Voltage range(V)(44.8~57.6)×N(N=NO. of series battery)

Charge current(A)

25(Recommended)/50(MAX)

Discharge current(A)

25(Recommended)/50(MAX)

Cycle times

80% DOD,cycles>6000,residual capacity>70%
Communication

RS485/RS232/CAN 2.0

Protection functionOver voltage / Under voltage / Over temperature / Low temperature / Over current / Short circuit


Working Conditions


UHB512UHB768UHB1024UHB1280UHB1536UHB1792UHB2048UHB2304UHB2560
InstallationIndoor

Working temperature(℃)

-10℃~50℃

Optimum working temperature(℃)

20℃~30℃

Storage temperature(℃)

-30℃~60℃

IP classIP20
Humidity5%-95%

Altitude(m)

≤2000
Cooling

Natural

Size [W x H x D, mm]851*255*(228+130*(N-1)), N=NO. of series battery

Weight(kg)

35+31*(N-1)

CertificateUN38.3
