UFox-WP Series_Ucanpower

Advantage

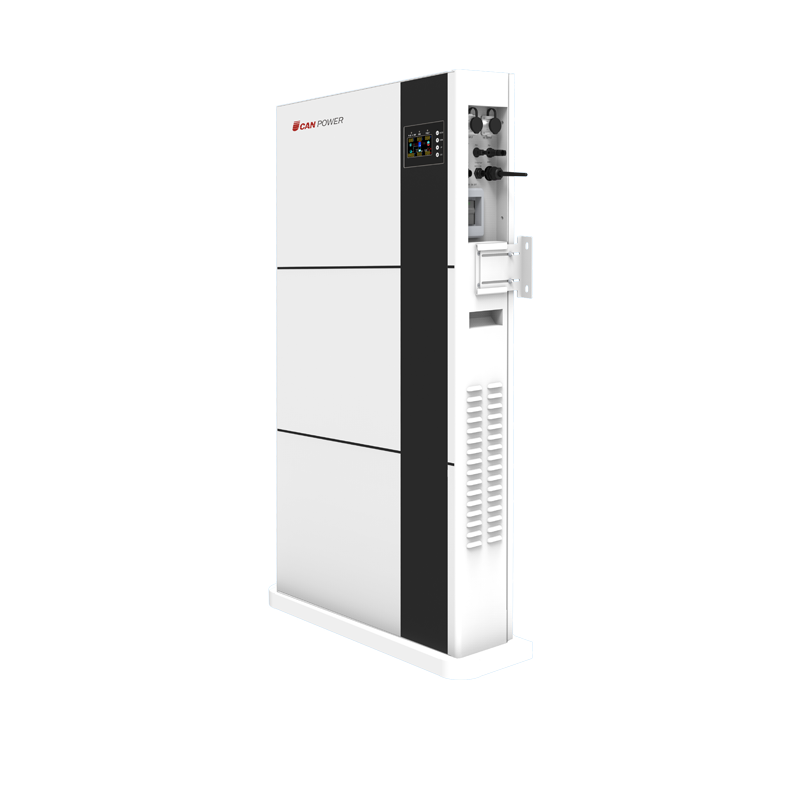

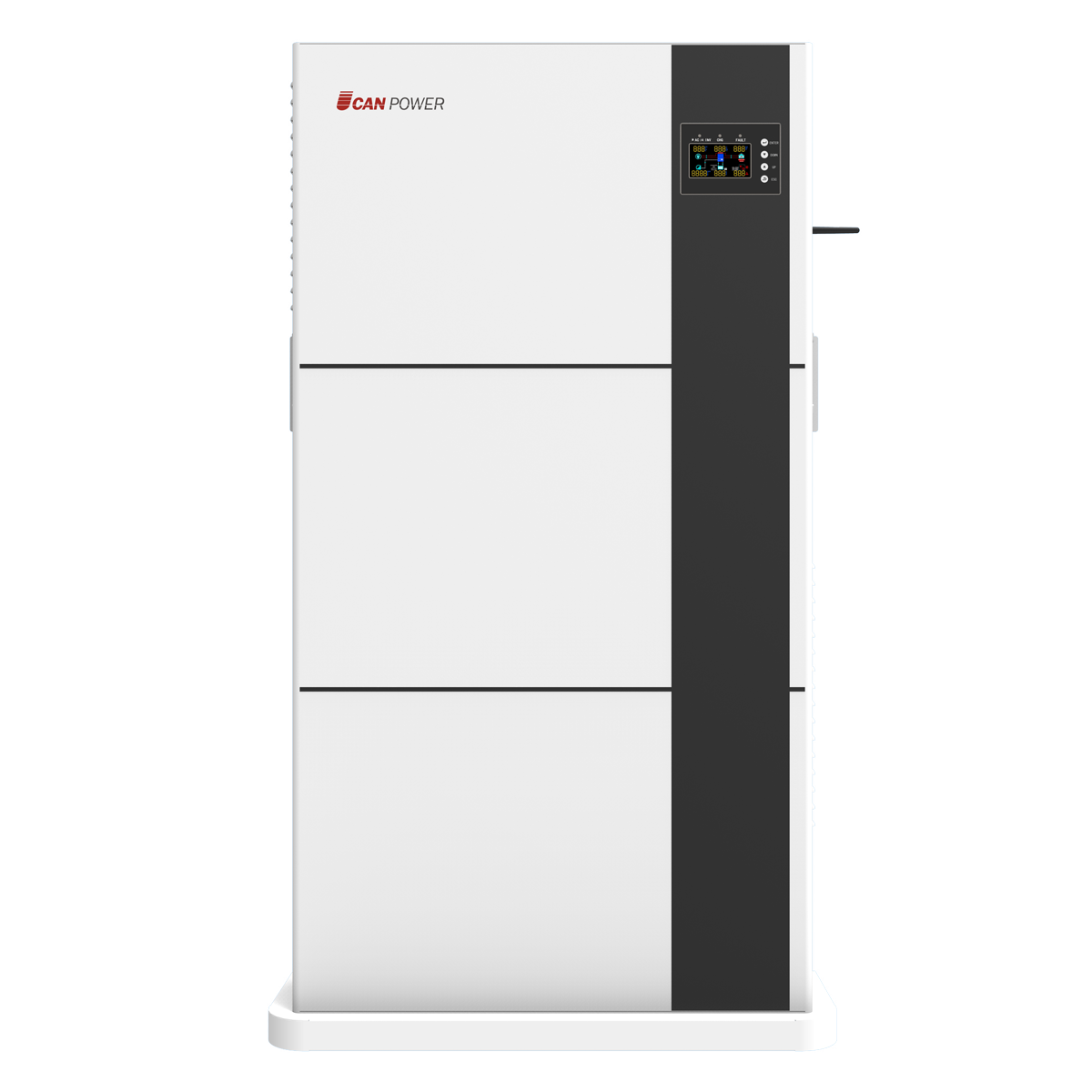

UFox-WP series is an off-grid energy storage system, which can connect solar panel, grid (or generator) and load. It has built-in LFP battery, off-grid inverter and energy management system (EMS). It has multiple work modes to meet lots of application scenarios, and reduce the electricity bill, store the energy for emergency back-up.

: Advanced Design

All in one design, compact and elegant appearance, 15cm thickness.
Both PV and grid charge, fast and convenient.
Peak-shaving mode, reduce the electricity bill.

: High Reliability

Integrate Max. 10.24kWh battery, long time power supply.
LFP battery cell technology, safe than ever.
Multiple protections, safe and reliable.

: User-Friendly

Multi-purpose AC outlet, eacy to use.
Multiple work modes, meet lots of scenarios.

Key Parameter

Battery

	UFox-WP-35E	UFox-WP-50E
Rated voltage	51.2V	51.2V
Voltage range	44.8~57.6V	44.8~57.6V
Capacity	10.24kWh	10.24kWh
Max. discharge rate	0.7C	0.7C
Max. charge rate	0.5C	0.5C
Battery type	Li-ion (LFP)	Li-ion (LFP)

AC Output(Backup)

	UFox-WP-35E	UFox-WP-50E
Rated power	3500W	5000W
Surge power	7000W,5s	10000W,5s
Rated output voltage	220/230/240V	220/230/240V
Max. output current	16A	22A
Rated frequency	50/60Hz	50/60Hz
THDv	＜3%	＜3%
Output wave	Pure Sine Wave	Pure Sine Wave
Output type	Pluggable connector	Pluggable connector

AC Input

	UFox-WP-35E	UFox-WP-50E
AC input voltage range	170~280V	170~280V
AC input frequency	50/60Hz	50/60Hz
AC charge current(Battery)	30A(0~60A Adjustable)	30A(0~80A Adjustable)

PV Input

	UFox-WP-35E	UFox-WP-50E
Max. PV power(Recommended)	4500W	6000W
Max. PV voltage	450V	450V
MPPT voltage range	120~430V	120~430V
Max PV charge current(Battery)	80A	100A

General Data

	UFox-WP-35E	UFox-WP-50E
Operating temperature	0~50℃	0~50℃
Storage temperature	-15℃~60℃	-15℃~60℃
Humidity	5%~95%	5%~95%
Cooling strategy	Fan	Fan
Weight	120kg	120kg
Dimension [W x H x D]	6601150200mm	6601150200mm
Enclosure protection rating	IP44	IP44
Communication	WiFi/RS485	WiFi/RS485
Certificate	CE,UN38.3,TUV mark	CE,UN38.3,TUV mark
