Residential Storage Solution

This solution is suitable for households in areas with high electricity prices, which can comprehensively improve self-consumption rate of PV system and effectively reduce electricity bills. Use UHome energy storage system or UHC hybrid inverter + UHB battery to build an intelligent PV energy storage system, which makes power management flexible, efficient and easy. At the same time, the solution is also suitable for areas with limited power supply or large price difference between peak and valley time of grid, to realize peak to valley electricity price adjustment or emergency power backup.

Application advantages

Improve self-consumption rate of PV system

During the day, the electricity generated by PV will be supplied to the local load preferentially, and the excess electricity will charge the battery. At night, the battery will discharge to supply the local load, and the self-consumption rate can be increased to 95%.

Adjust peak to valley electricity price of gird to reduce electricity bills

Set the charging and discharging time of the battery according to the peak and valley electricity price, charge the battery when the electricity price is low, and discharge the battery to supply the load when the electricity price is high

Work as backup power supply, supply power to critical loads when the grid is down.

When grid is down, the system will switch to backup mode seamlessly to power refrigerators, routers, lights, computers or other critical loads.

Realize smart home energy management

The energy storage system has multiple working modes, which can realize reasonable dispatching of PV, grid, and battery, making household power supply more intelligent, efficient, and low-cost. At the same time, the UCANESS monitoring platform can realize real-time monitoring of household power generation and electricity consumption.

System diagram

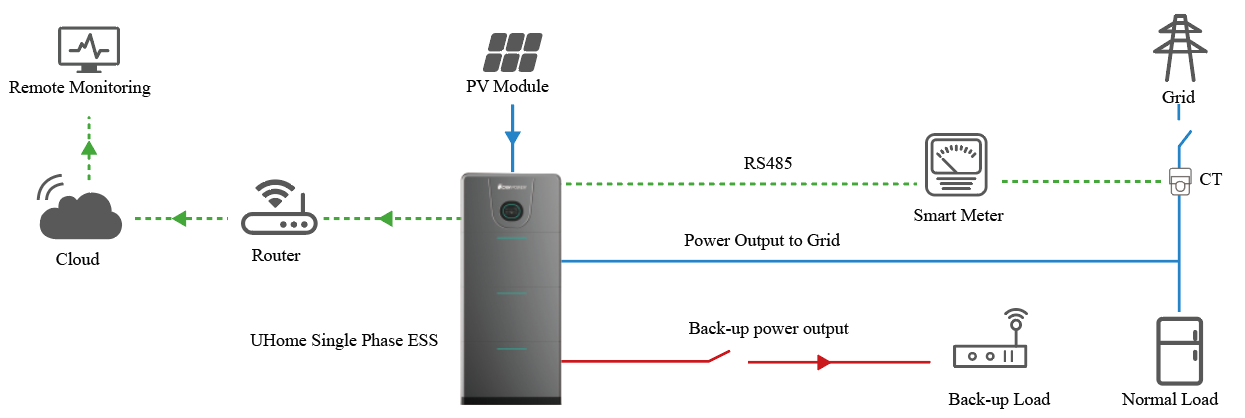

Newly Installed Residential Single Phase Energy Storage System





For newly installed residential single-phase energy storage system, it is recommended to use UHome all-in-one energy storage system. UHome integrates inverter, battery and BMS, which is easy for installation and maintenance. IP65 protection, so it can be installed indoor or outdoor withstanding all weather conditions.

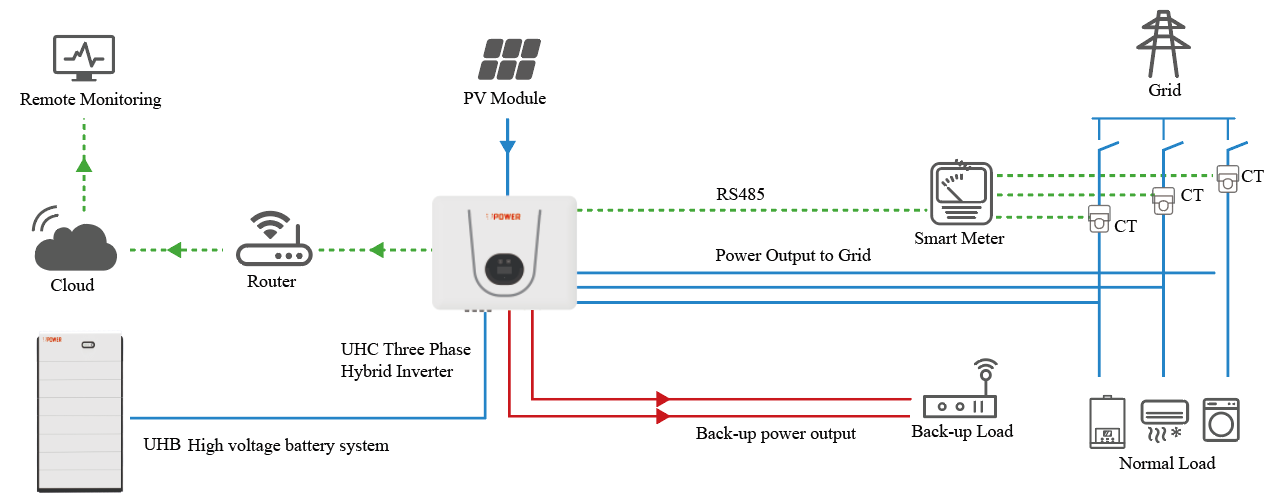

Newly Installed Residential Three Phase Energy Storage System





For some households with three-phase application, use UHC three-phase hybrid inverter + UHB high voltage battery to build a residential energy storage system. The capacity of UHC hybrid inverter is 4kW~20kW, which can fully meet the needs of residential application. UHB series high voltage battery adopts modular design with elegant appearance, the capacity is from 5.12kWh-25.6kWh.

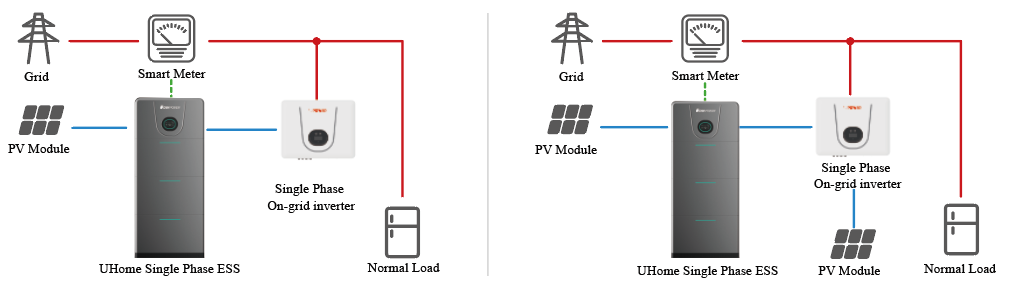

DC-Coupled Residential Single Phase Grid-Connected Energy Storage System





For users who have installed grid-connected PV system, they can install a hybrid inverter to build any energy storage system, combining with smart meter to greatly improve the self-consumption rate and obtain better return on investment.

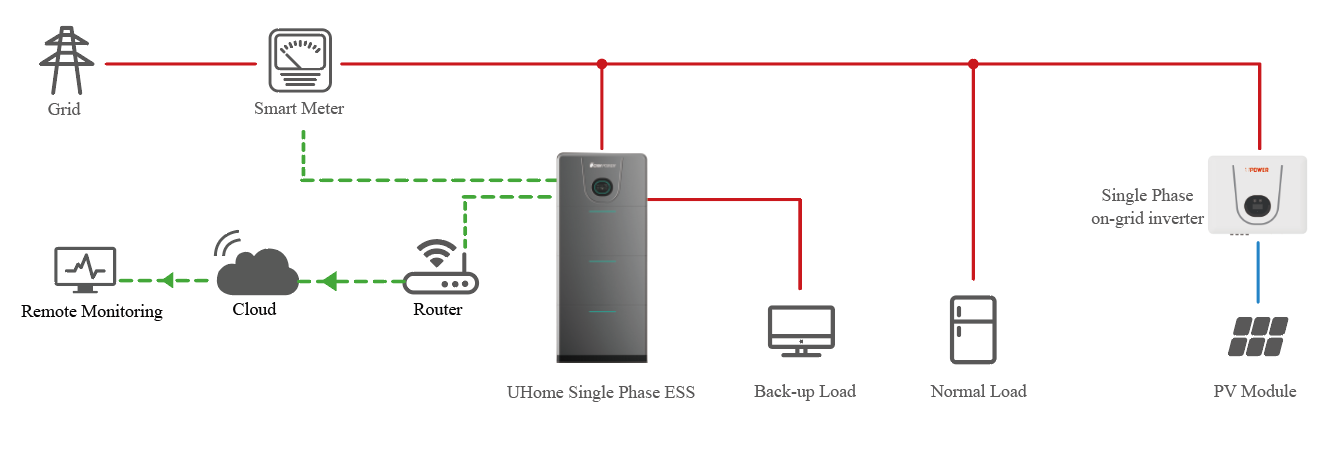

AC-Coupled Residential Single Phase Grid-Connected Energy Storage System




The UHome series all in one ESS can work with single-phase grid-connected inverter to complete the upgrade of existing PV system to energy storage system. After upgrading, the self-consumption rate of PV system can be improved greatly, which is especially suitable for areas with high electricity price.

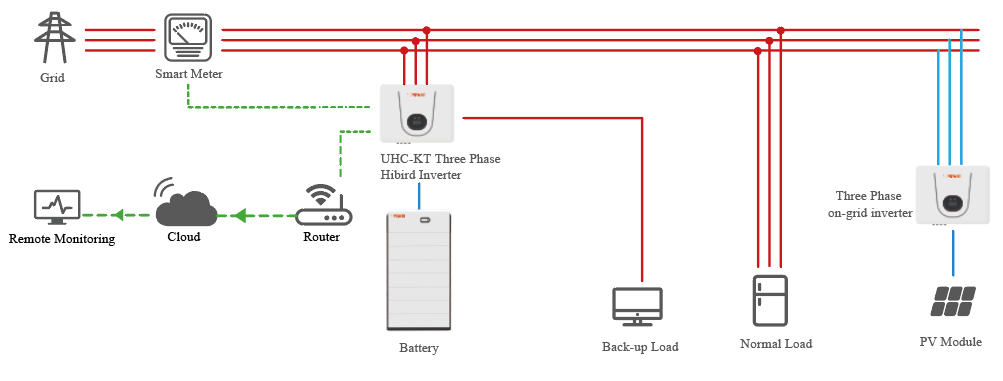

AC-coupled Residential Three Phase Grid-Connected Energy Storage System




For users who have already installed three-phase grid-connected PV system, UHC three-phase hybrid inverter + UHB high voltage battery can be selected to upgrade grid-connected system to energy storage system.


CASE

Italy 15kW Household power station:15kW/12.8kWh

PV power：15kW，Energy storage capacity：12.8kWh，Installation location: Italy

PV power：15kW

Energy storage capacity：12.8kWh

Installation location:  Italy

India10kW Household power station:10kW/7.68kWh

PV power：10kW，Energy storage capacity：7.68kWh，Installation location: India

PV power：10kW

Energy storage capacity：7.68kWh

Installation location: India

Türkiye 5kW Household power station:5kW/17.92kWh

PV power：5kW，Energy storage capacity：17.92kWh，Installation location: Türkiye

PV power：5kW

Energy storage capacity：17.92kWh

Installation location: Türkiye

Related Product

UHome Series

UHome-3~8K0L series is an all-in-one solar and storage solution, which integrates the inverter, battery charger, UPS and battery into a pre-wired modular system for easier and faster installation, which reduce the installation time of up to 50%. Compact, elegant appearance with IP65 design, so it can be mounted indoor or outdoor withstanding all weather conditions.

UHC-15~20KT

UHC-15~20KT suit small commercial applications. Hybrid and AC-coupled solution provide flexible options for both new and retrofit systems, with the feature of Max. 10 units inverter in parallel, offering a solution for small commercial project. All of them ensure the most efficient use of solar energy locally, increase self-consumption and grid independence, reduce your electricity bills.

UHB-50Ah Series

UHB-50Ah series is a high voltage battery that offers multiple energy storage options through an expandable modular design (2-10 modules combined), which further simplifies installation and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance.
